Shuttle AV45GT (P4X266A - Pentium 4 DDR)
By The Mad
Sommaire:



Packaging - Caractéristiques

Chez Shuttle, l'originalité n'est pas dans la boite. En effet, celle-ci est strictement identique à celle de la AV40 et probablement identique a toutes les cartes de la gamme :



Il est etonnant de constater qu'une fois de plus, c'est une AB30 a base de chispet Intel i845 qui est imprimée sur la boite de la carte mere ! Serait-ce par soucis de camouflage ? C'est trés possible ou simplement dans une optique de réduction des couts (et donc de boite unique). Voyons le contenu de la boite :

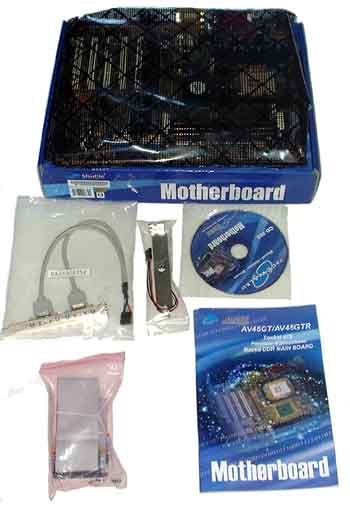

Voici le contenu de la carte :

  • une nappe 34 connecteurs ( disquette )
  • une nappe 80 connecteurs IDE UDMA66/100
  • une carte fond de panier avec deux ports USB supplementaires
  • une carte fond de panier avec un connecteur audio (pour la voie centrale/basse)
  • un CD-ROM de drivers
  • un manuel

Le manuel, tout comme le CD, est unique pour la AV45GT et la AV45GTR. Celui-ci est bien rédigé est clair, tous les parametres du BIOS y sont détaillés clairement.



  • Caractéristiques de la carte

Bon, la, on va fainéanter un peu et on va vous recopier les caractéristiques de la carte selon Shuttle :


Type de CPU Supporté : Socket 478
Intel Pentium 4 - Socket 478 pins

Chipsets: VIA P4X266
(North) VIA P4X266A
Support Pentium 4 System bus
lSupport DDR 200 / 266 SDRAM interface Support AGP interface
Support V-Link interface to VT8233
Support ACPI 1.0b compliant power management
Support APM 1.2 compliant power management

(South) VIA VT8233
Built in high bandwidth 266MB/S 8-bit V-link Host controller
Integrated Fast Ethernet Controller with 1/10/100Mb capability
Integrated USB controller with three root hub and six function ports
Integrated dual channel UDMA 33/66/100 master mode EIDE controller
LPC interface for Low Pin Count interface to Super-I/O or ROM
Integrated Keyboard Controller with PS2 mouse support
Integrated DS12885-style Real Time Clock with extended 256 byte CMOS RAM and Day/Month Alarm for ACPI
System Management Bus Interface
Sophisticated PC99-Compatible Mobile Power Management
Integrated Plug and Play Controller



Form Factor
ATX

Front Side Bus
100 / 133MHz (Bios adjustable)

Memory
Support DDR 200/266 compliant SDRAM up to 2GB (un-buffered) capacity
Support DDR 200/266 compliant SDRAM up to 3GB (registered) capacity

Audio: Hardware C-Media 8738 -PCI-6CH/LX
Support 5.1 speakers, C3DX positional audio in 6 CH speaker mode
HRTF-3D positional audio, supporting Direct Sound 3D and A3D interface
Legacy SBPRO compatible


Expansion Slot:
1 x AGP 2.0 compliant slot:
Support external AGP V2.0 compliant VGA device
support 1.5/3.3V AGP electrical signals
Support 1X, 2X, 4X AGP data transfer

5 x PCI slots:
PCI 2.2 compliant, 32-bit BUS Master Slots
133 Mbyte / sec maximum throughput

LPC I/O:ITE 8705F
Comply with Intel Low Pin Count Interface Specification Rev. 1.0
ACPI V. 1.0 compliant
Built in H/W monitor feature
Two 16C550 UARTs
Supports two standard Serial Ports
Supports IrDA 1.0/ASKIR protocols
Supports Smart Card Reader protocols
Built in Smart Card Reader
IEEE 1284 Parallel Port
Standard mode -- Bi-directional SPP compliant
Enhanced mode -- EPP V. 1.7 and V. 1.9 compliant
High speed mode -- ECP, IEEE 1284 compliant
Floppy Disk Controller
Supports two 360K/ 720K/ 1.2M/ 1.44M/ 2.88M floppy disk drives
Enhanced digital data separator
3-Mode drives supported
Keyboard Controller
Game Port
Dedicated MIDI Interface
Support power-failure resume and power button de-bounce

H/W Monitoring : Built in ITE 8705F
2 thermal inputs from remote thermal resistor to monitor system temperature
1 thermal input from thermal diode to monitor CPU temperature
8 voltage monitor inputs
1 chassis intrusion input
Monitors 3 fan tachometer inputs
Smart Guardian Controller to provide programmable fan speed automatic control

Power Management
APM 1.2 compliant
ACPI 1.0 compliant
Support multiple system suspend types - suspend to DRAM, suspend to disk, and all with hardware automatic wake-up

Bios: Award PnP BIOS
Stored in 2 Mb flash memory
DMI 2.3
CPU 100 / 133MHz FSB setting
BIOS FSB step-less setting from 100MHz to 166MHz with 1 MHz increment
CPU core voltage setting from +0.025V ~ +0.20V
AGP (Vddq) voltage setting from +0.05V ~ +0.20V
I/O voltage setting from +0.1V ~0.2V
Support IRQ manual assign table
Bootable from Floppy, ATAPI device, USB device, SCSI device

On Board Ports / Connectors / Jumpers / Headers (front/back panel): Ports
Back Panel:
2 Serial Ports
1 Parallel Port (SPP, EPP, ECP)
1 PS/2 Keyboard Port
1 PS/2 Mouse Port
2 USB Ports
1x Game / MIDI Port
1x Line in, 1x Line out, 1x Mic

Connectors:
1 x ATX power connector
1 x 4 pin 12V ATX power connector
1 x 6 pin 5V / 3.3V ATX power connector
4 x Fan Power connectors (one for system chipset fan)
4 x UltraDMA/100 Bus Master IDE (2 RAID IDE optional)
1 x Floppy

Jumpers:
Clear CMOS
BIOS Boot block protection

Headers:
2 sets of 2 x5 pin Front Panel USB header (1 set is from ISL1561 by optional)
Mini CD Audio in
TAD in
CD Audio in

Other Features:
Suspend switch and LED










Suite ( Présentation du chipset (P4X266A) )
